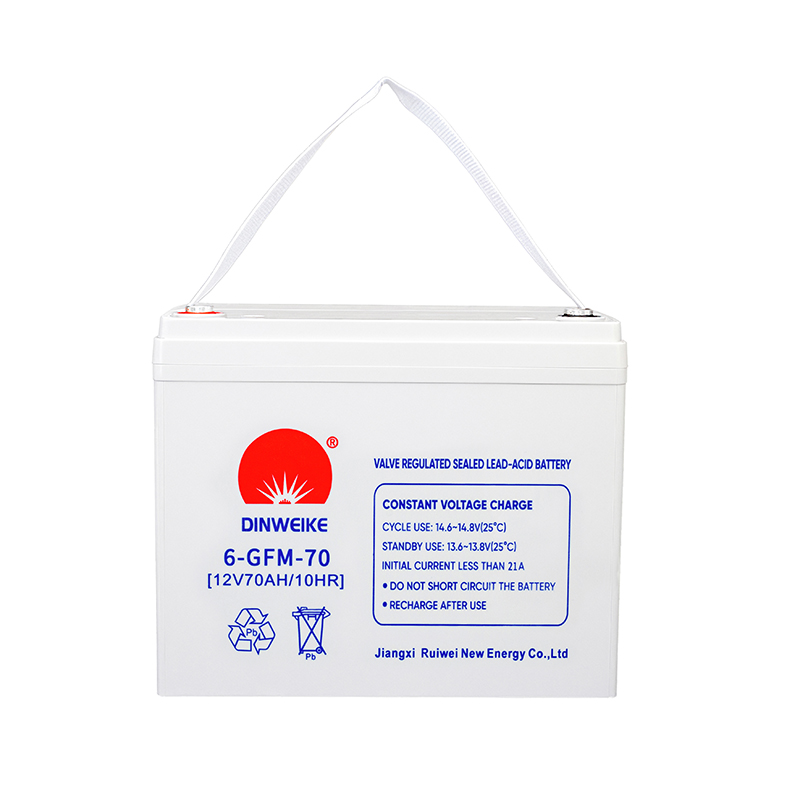

12V 70ah 正面.JPG

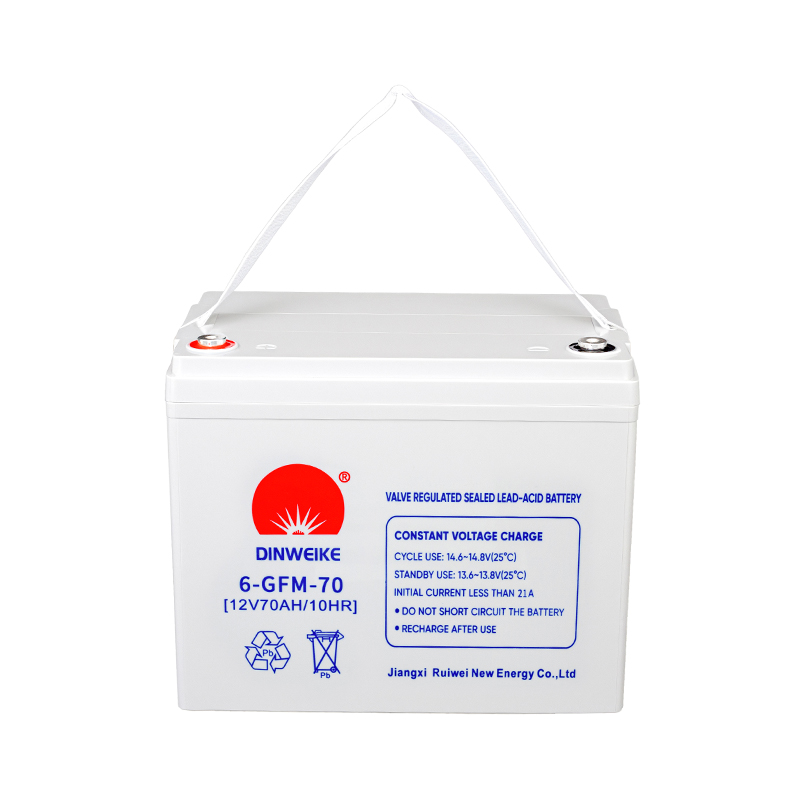

12V 70AH 俯视图.JPG
  • 12v70AH.jpg
  • 12V 70ah 正面.JPG
  • 12V 70AH 俯视图.JPG

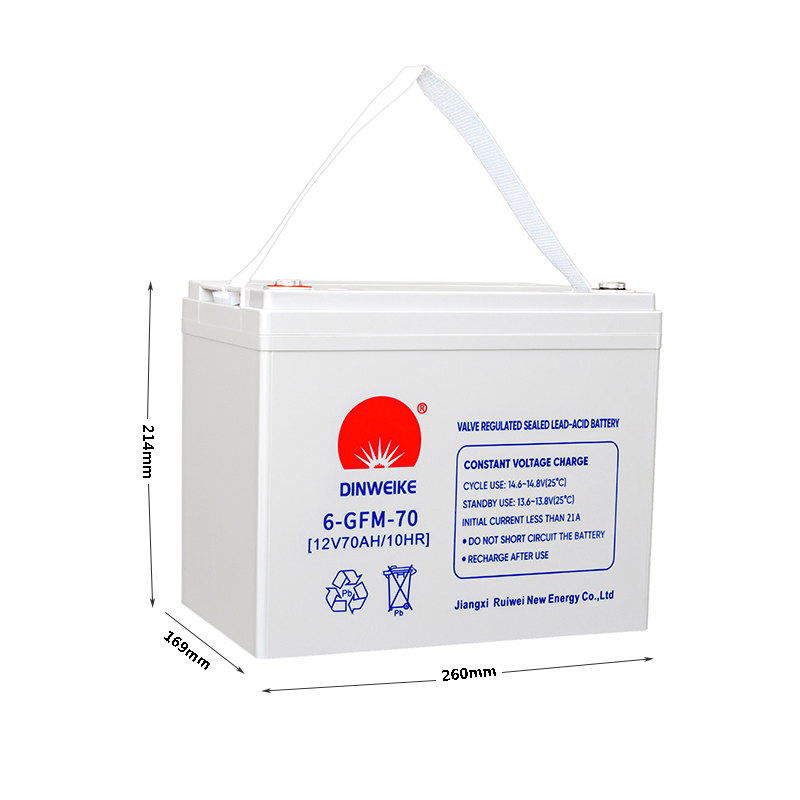

  • 12v70AH带尺寸图.jpg
    • 1
    • 2
    • 3
    • 4

12V 70Ah Solar Gel Battery

In the realm of energy storage, the 12V 70Ah Deep Cycle Gel Battery emerges as a stalwart solution, offering a potent combination of reliability, longevity, and efficiency. From off-grid living to renewable energy systems, these batteries play a pivotal role in powering a wide array of applications, driving innovation and sustainability forward.

Brand Name:DINWEIKE
Model Number:6-GFM-70
Nominal voltage: 12V
Rated Capacity:70Ah
Size:260*169*214mm
Weight:21.5kg
Operating temperature range: -20℃ ~ 50 ℃
The design life : 6-8 years
Battery Type:Deep Cycle Sealed Gel Battery
The discharge rate: C10/C20
Warranty: 3years



Features

1.Free maintenance, eliminating the need for water rehydration.

2. High-purity lead-tin alloy is utilized to effectively reduce the battery's self-discharge rate and enhance its service life

3. The battery is constructed with a high-quality ABS shell, providing high strength and excellent toughness

4. Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.

5. Conduct four large current discharge texting before package to insure battery quality.

6. Full charge before delivery, can be used directly.

7. Our product meets international standards, certified by ISO9001 and CE, ensuring high-quality and safety for users.



Specification



Battery Model

  6-GFM-33

  6-GFM-38

  6-GFM-50

  6-GFM-65

  6-GFM-70

Nominal Voltage

12 Volt

Nominal Capacity

(10HR)

33 AH

38AH

50AH

65AH

70AH

Dimensions

L*W*H

194*132*172

196*166*175

229*138*220

350*166*175

260*169*214

Max. Discharge Current

300A (5s)

380A (5s)

500A (5s)

500A (5s)

840A (5s)

Terminal (Optional)

T9

T9

T14

T14

T14

Operating Temp.Range

Discharge : -15 ~ 50℃ (5~122°F)

Charge : 0 ~ 40℃ (32-104°F)

Storage : -15 ~ 40℃ (5~104°F)

Nominal Operating Temp.Range

25 ± 3℃ (77±5°F)

Internal Resistance

Approx 8.4mΩ

Approx 8.2mΩ

Approx7mΩ

Approx 5.8mΩ

Approx5.5mΩ

Cycle Use

14.5V~14.9V at 25 ℃(77 ºF)Temp. Coefficient -30mV/ C

Standby Use

13.6V~13.8V at 25 ℃(77 ºF)Temp. Coefficient -20mV/ C

Container Material

ABS


Hddf4729c56eb4331bb5c087641583ac3a (2).jpg


Applications:

Deep cycle maintenance free gel battery. Our products can be used in UPS/ EPS, solar street light, solar power systems, wind system, Communication System and Marine Equipment etc.
