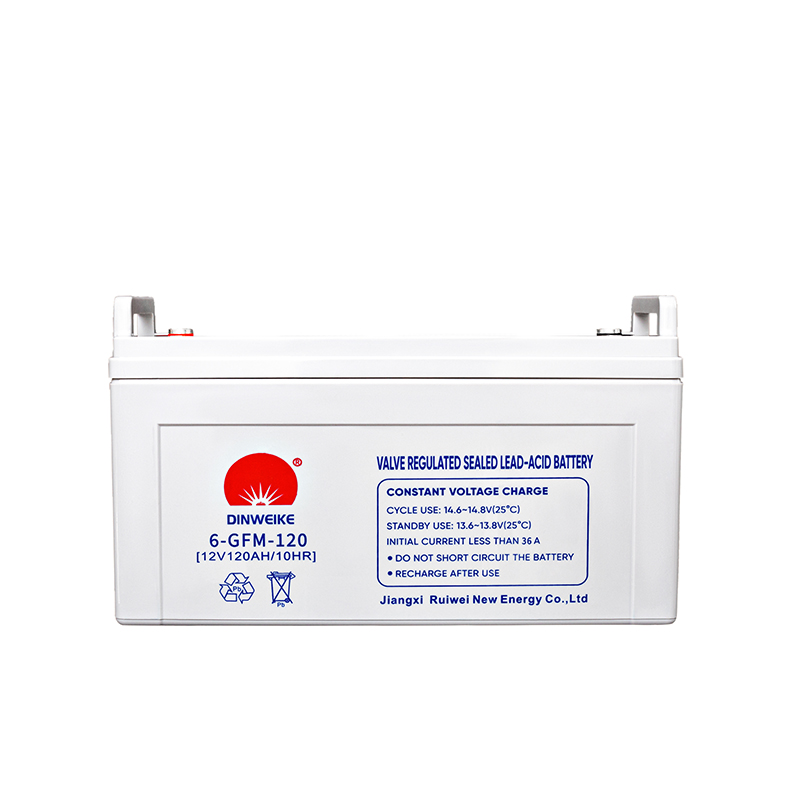

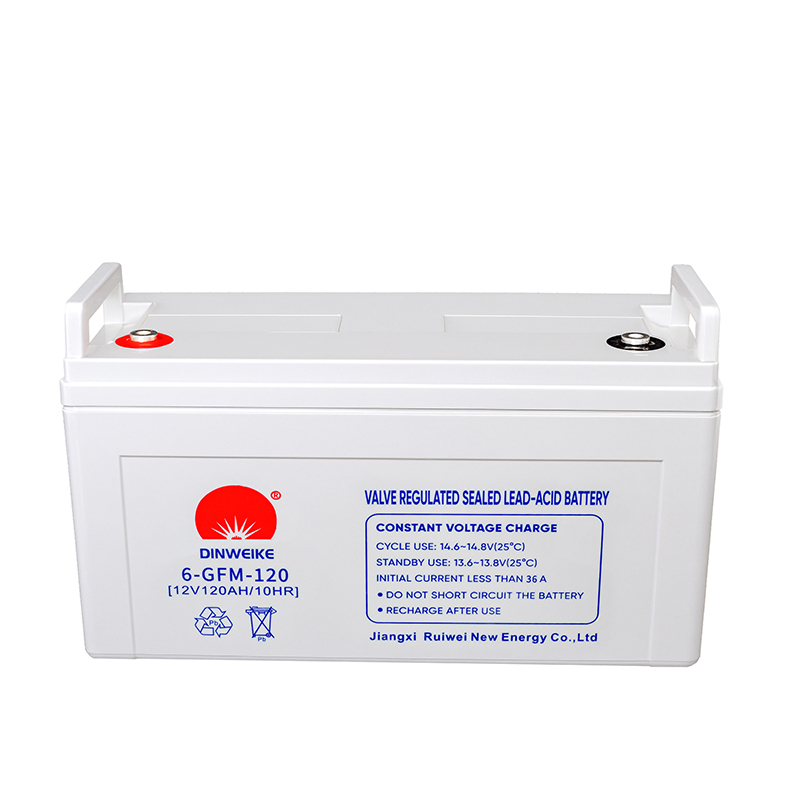

12V 120Ah Solar Gel Battery

In the realm of energy storage, the 12V 120Ah Deep Cycle Gel Battery emerges as a stalwart solution, offering a potent combination of reliability, longevity, and efficiency. From off-grid living to renewable energy systems, these batteries play a pivotal role in powering a wide array of applications, driving innovation and sustainability forward.

Brand Name:DINWEIKE
Model Number:6-GFM-120
Nominal voltage: 12V
Rated Capacity:120Ah

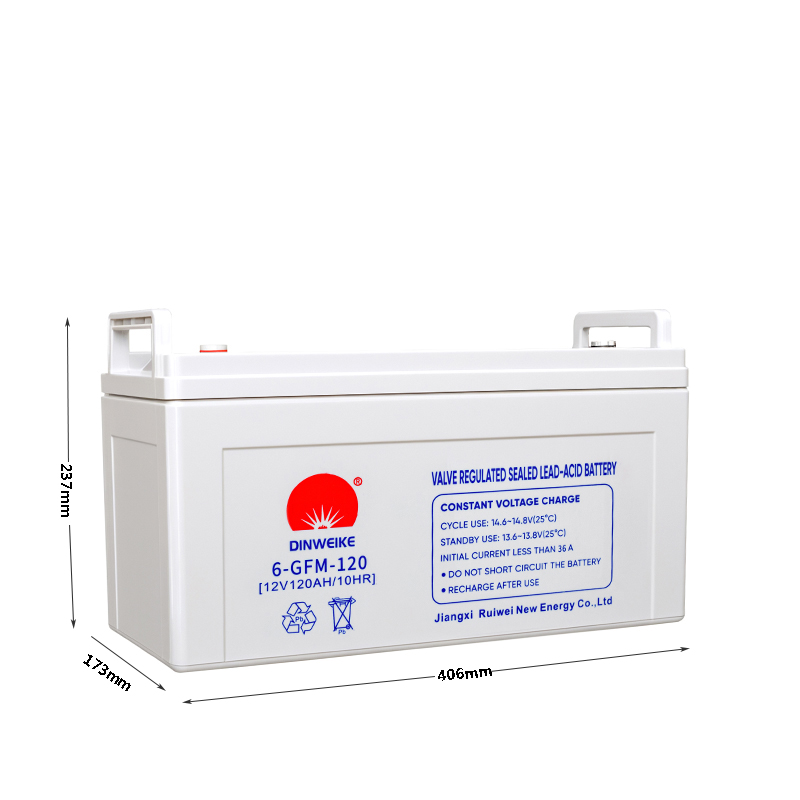

Size:406*173*237mm
Weight:33.2kg
Operating temperature range: -20℃ ~ 50 ℃
The design life : 6-8 years
Battery Type:Deep Cycle Sealed Gel Battery
The discharge rate: C10/C20
Warranty: 3years



Features

1.Free maintenance, eliminating the need for water rehydration.

2. High-purity lead-tin alloy is utilized to effectively reduce the battery's self-discharge rate and enhance its service life

3. The battery is constructed with a high-quality ABS shell, providing high strength and excellent toughness

4. Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.

5. Conduct four large current discharge texting before package to insure battery quality.

6. Full charge before delivery, can be used directly.

7. Our product meets international standards, certified by ISO9001 and CE, ensuring high-quality and safety for users.



Specification

Battery Model

6-GFM-100

6-GFM-120

6-GFM-150

6-GFM-200

6-GFM-250

Nominal Voltage

12 Volt

Nominal Capacity

(10HR)

100 AH

120AH

150AH

200AH

250AH

Dimensions

L*W*H(mm)

330*173*216

406*173*237

485*170*241

521*238*217

519*267*220

Max. Discharge Current

1200A (5s)

1300A (5s)

1500A (5s)

2000A (5s)

2500A (5s)

Terminal (Optional)

T14

T14

T10

T10

T10

Operating Temp.Range

Discharge : -15 ~ 50℃ (5~122°F)

Charge : 0 ~ 40℃ (32-104°F)

Storage : -15 ~ 40℃ (5~104°F)

Nominal Operating Temp.Range

25 ± 3℃ (77±5°F)

Internal Resistance

Approx

4.5mΩ

Approx

4.3mΩ

Approx

4mΩ

Approx

3mΩ

Approx

1mΩ

Cycle Use

14.5V~14.9V at 25 ℃(77 ºF)Temp. Coefficient -30mV/ C

Standby Use

13.6V~13.8V at 25 ℃(77 ºF)Temp. Coefficient -20mV/ C

Container Material

ABS


Hddf4729c56eb4331bb5c087641583ac3a (2).jpg


Applications:

Deep cycle maintenance free gel battery. Our products can be used in UPS/ EPS, solar street light, solar power systems, wind system, Communication System and Marine Equipment etc.
