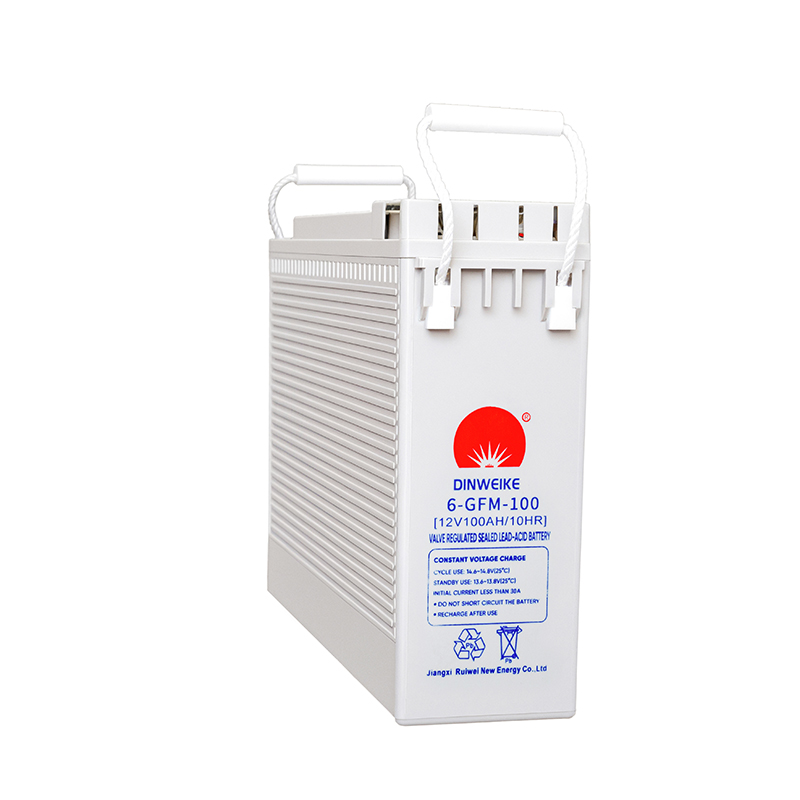

12V 100AH Front Terminal Solar Battery

Front terminal solar battery is specially designed for telecom use with 10 years design life in float service. By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high reliability. The dimensions of the front terminal battery is designed for 19″ and 23″ cabinet installation. It is suitable for UPS/EPS applications.
Brand Name:DINWEIKE
Model Number: 6-GFM-100
Nominal voltage: 12V
Rated Capacity:100Ah
Operating temperature range: -15℃ ~ 50 ℃
The design life : 10 years

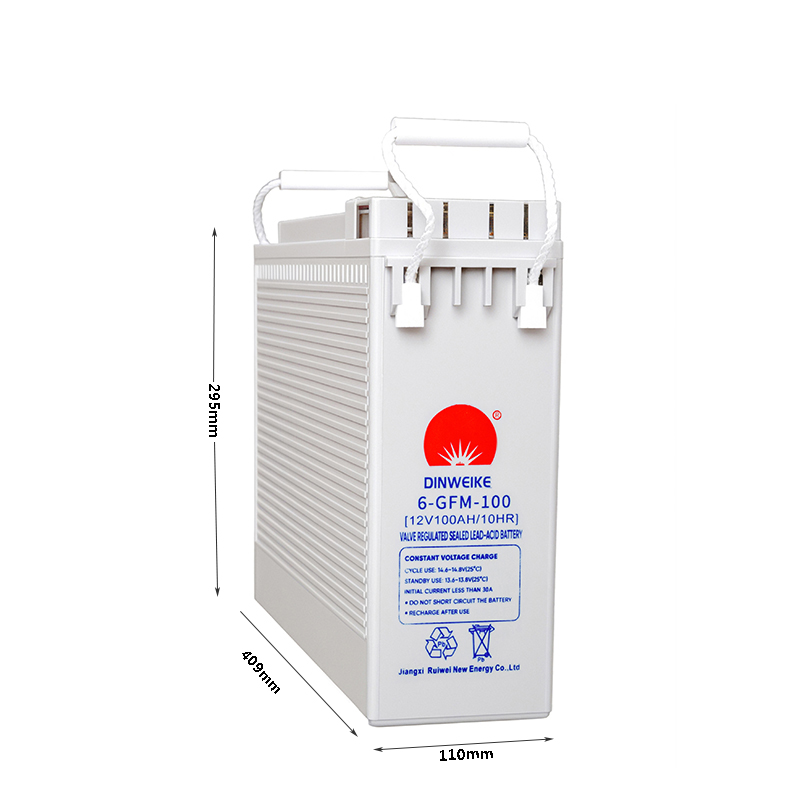

Size:409*110*295mm
Weight:31kg
Battery Type: Front Terminal Lead Acid Battery
The discharge rate: C10/C20
Warranty:3years



Features

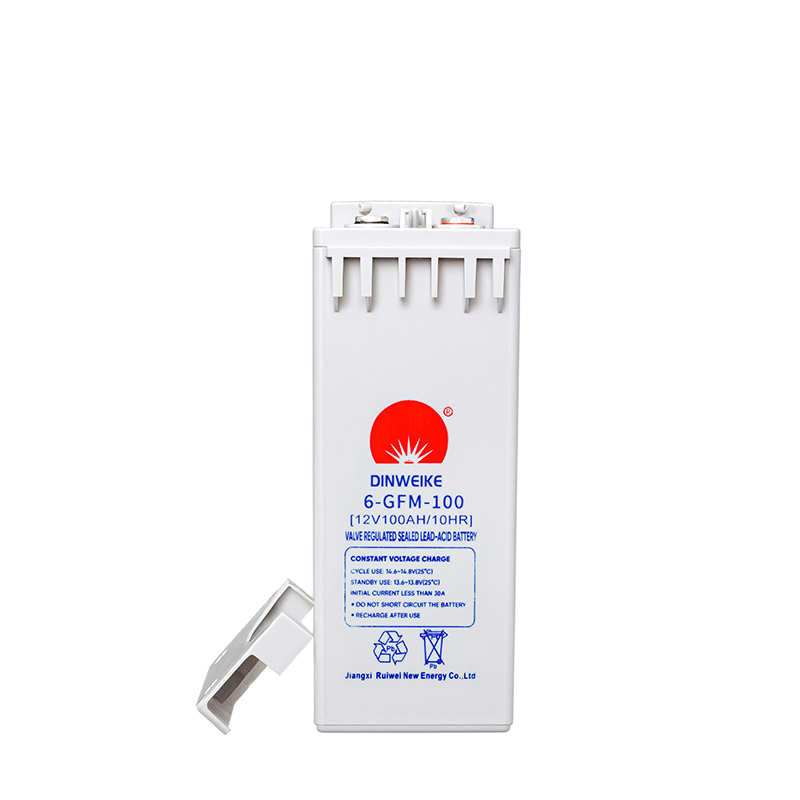

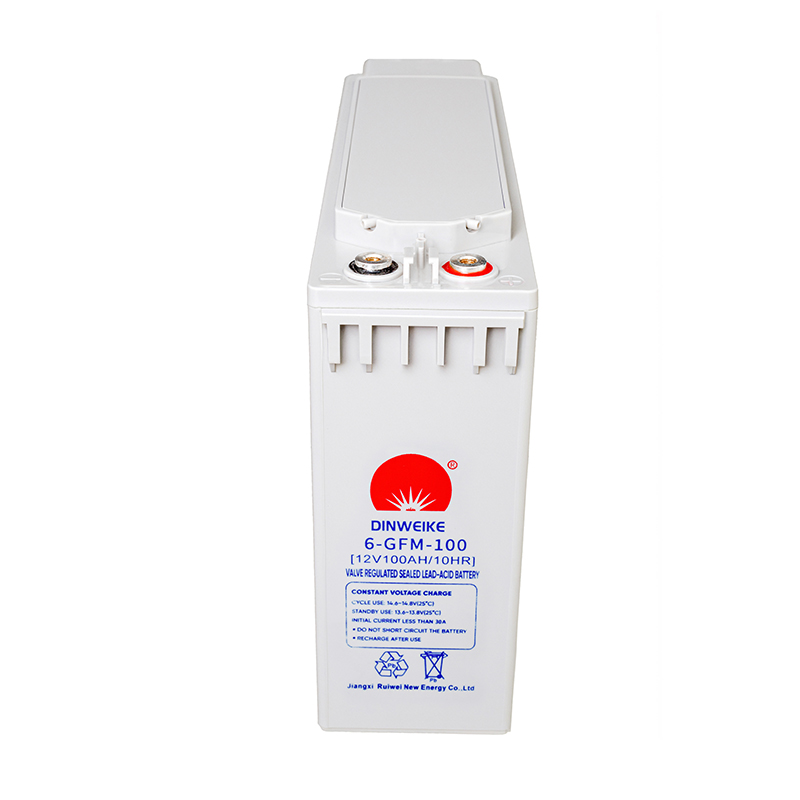

1. Terminal layout: The positive and negative terminals are located at the front, which is convenient for connection and maintenance.

2. Suitable for high-density cabinets: Especially suitable for telecommunications rooms and data centers.

3. Easy maintenance: No need to disassemble the battery for detection and repair.

4. Better heat dissipation: Optimize the internal structure and improve the efficiency of thermal management.

5. Save space: Compact design, more efficient use of cabinet space.

6. High safety: Adopt VRLA technology, strong sealing, prevent electrolyte leakage.



Specification

Battery Model

EU-6GFM-100

EU-6GFM-105

EU-6GFM-150

EU-6GFM-200

Nominal Voltage

12V

12V

12V

12V

Nominal Capacity

100AH

105AH

150AH

200AH

Dimensions

409*110*295

506*110*237

565*110*288

560*125*326

Approx Weight

31KG

29KG

46KG

58.5KG

Terminal (Optional)

T11

T11

T11

T11

Operating Temp.Range

Discharge : -20 ~ 60℃ (5~122°F)

Charge : 0 ~ 50℃ (32-104°F)

Storage : -20 ~ 60℃ (5~104°F)

Nominal Operating Temp.Range

25 ± 5℃

Internal Resistance

Approx 2.5mΩ

Design Life Time

8-10 Years

8-10 Years

8-10 Years

8-10 Years

Warranty

3Years

3 Years

3Years

3 Years

Container Material

ABS


Hddf4729c56eb4331bb5c087641583ac3a (2).jpg


Applications:

Deep cycle maintenance free lead acid battery. Our products can be used in UPS/ EPS, solar street light, solar power systems, wind system, Communication System and Marine Equipment etc.
